GETTING STARTED

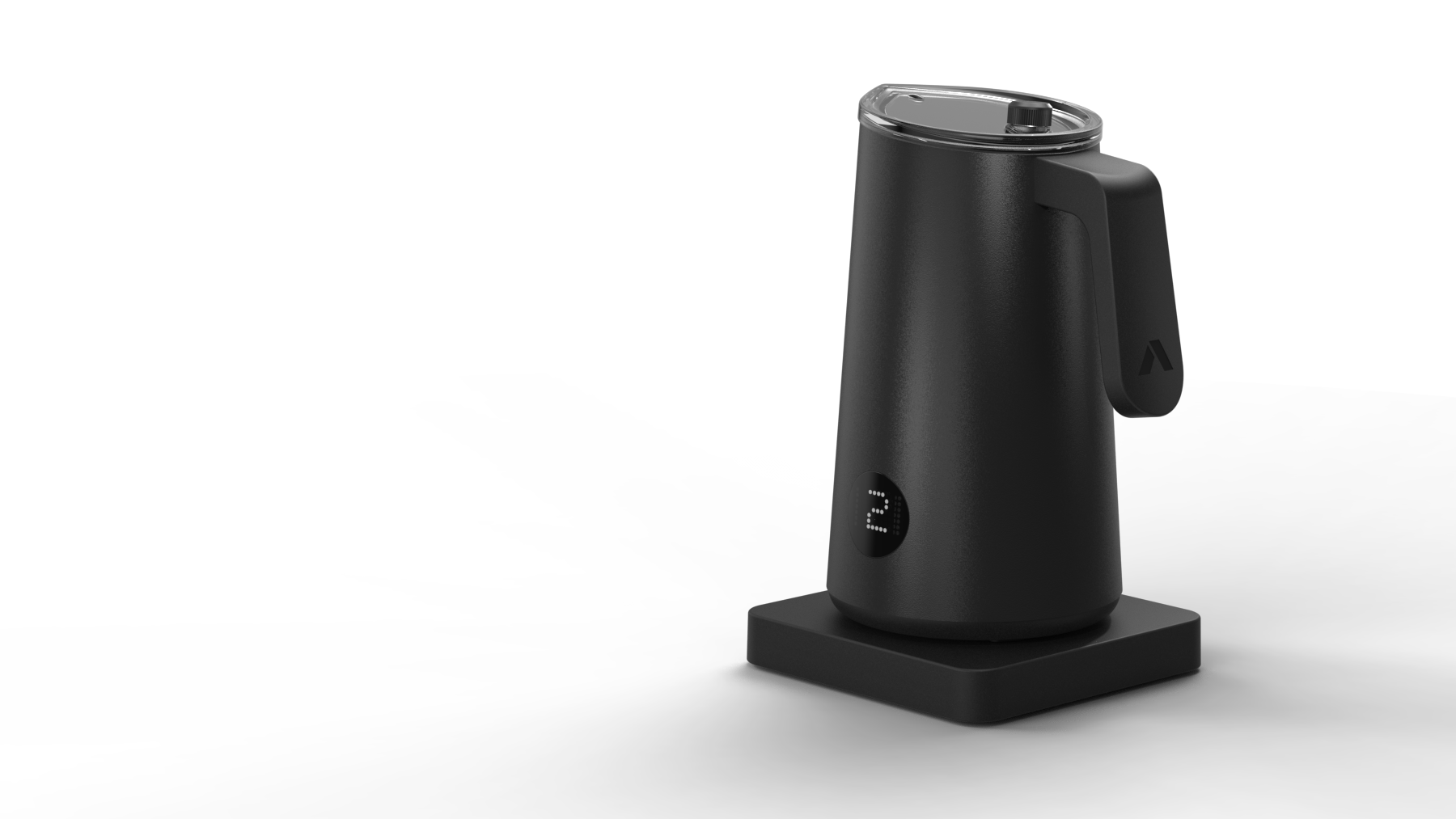

with the NanoFoamer PRO by Subminimal
THIS VIDEO SAYS IT ALL

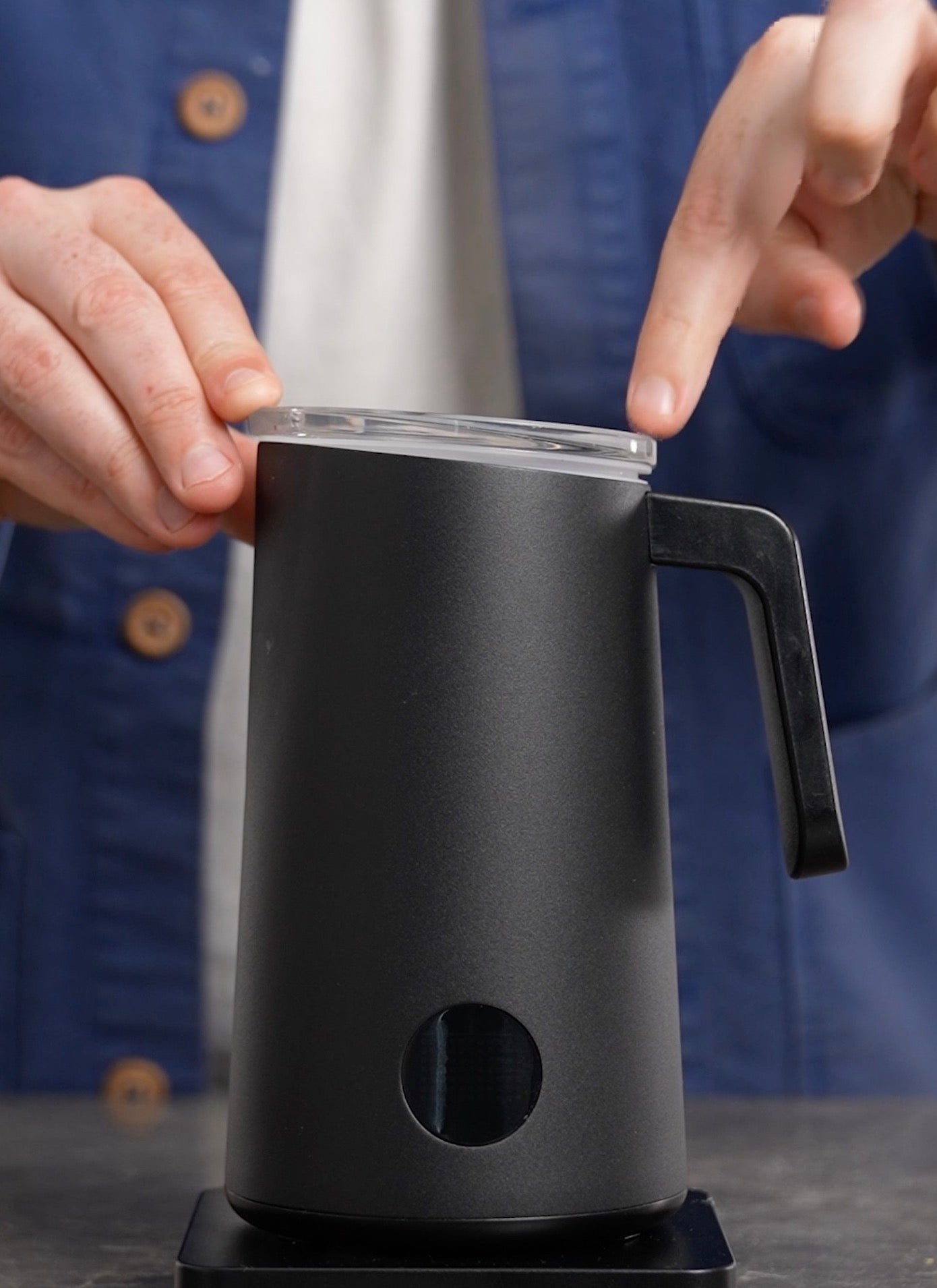

LID ON
It might sounds trivial, but since the impeller is attached to the lid, the position of the lid directly affects the alignment of the impeller and for the best performance, the impeller needs to be perfectly aligned.
Make sure you put the lid on firmly before you start. We recommend aligning the front first then pushing down on the back part.
GEN-2 UPDATE
The lid fits a little deeper on the Gen-2 and less sensitive, additionally the adjustment knob allows the impeller to be fine tuned in the event the lid is not perfectly flat.

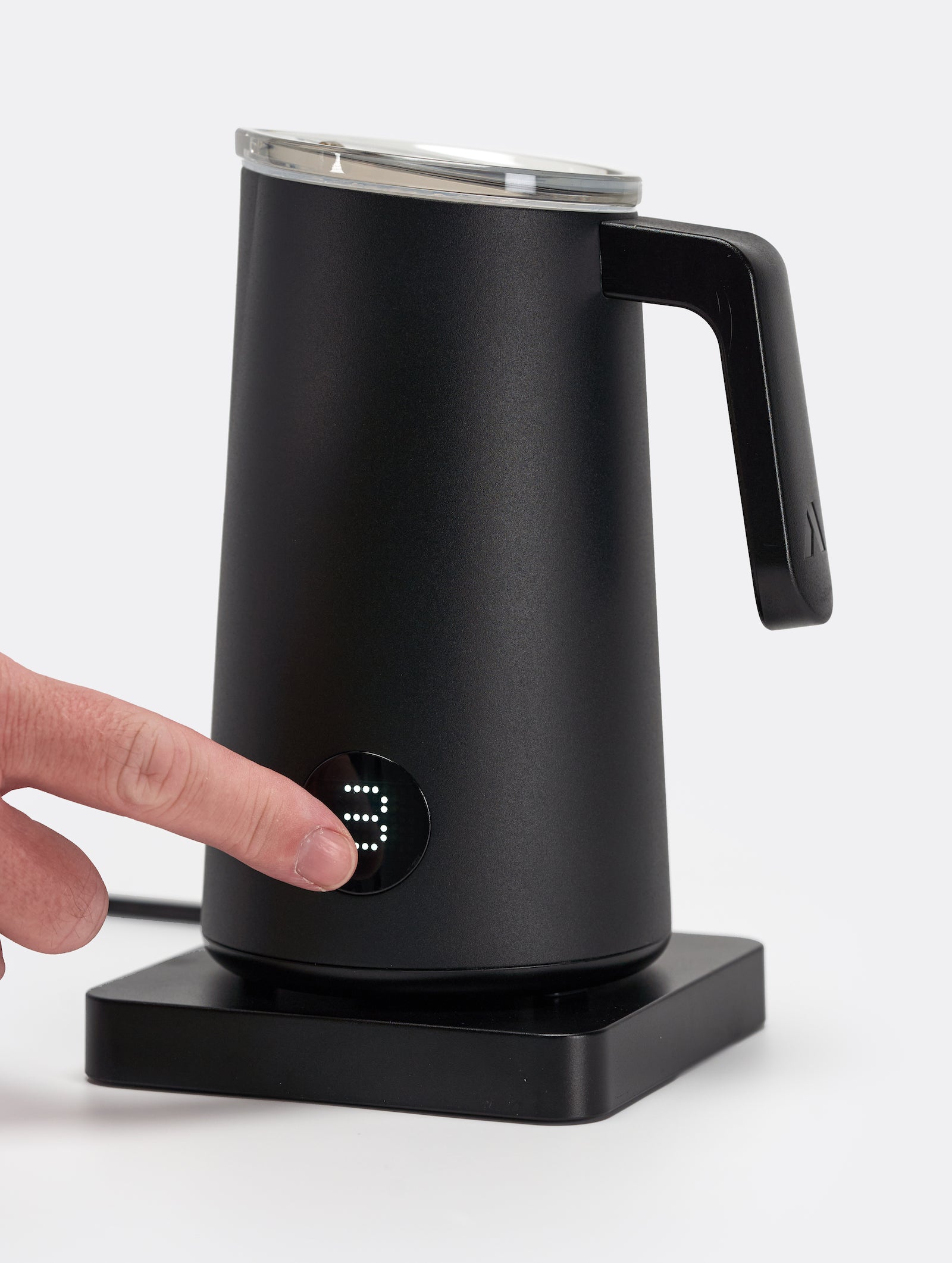

PROGRAM MODES
PROGRAM 1
With just one second (0.5s in GEN-2) of aeration and a slightly slower impeller speed, this program is designed for your smallest drinks or for drinks with a tiny amount of foam.
PROGRAMS 2,3,4
Higher programs lead to longer aeration times, which gradually ad more foam to your milk. Adjust to your preferred foam level.
PROGRAM 5
This has the longest aeration (20seconds) and is designed for the really big drinks.
PROGRAM 0
This program will create beautifully foamed cold milk with a sixteen second aeration. It will run faster than the other programs as it does not need to heat the milk
AERATION TIMES
P1-> 1 Second (0.5s in Gen-2)
P2 -> 2 Seconds (1.4s in Gen-2)
P3 -> 4 Seconds
P4 -> 8 Seconds
P5 -> 20 Seconds
Po -> 16 Seconds
Quick Tip: Track your milk level for consistent results.
If you increase the milk level, you may also need to increase the program mode.
ABOUT LIQUID FLOW
Not every liquid flows the same way. In fact there are hundreds of types of milk and plant-based alternatives, each with different attributes such as fat and protein content, viscocity and additives, making them flow and foam differentl., We manage these variances using the flow controllers.
So how do they work?

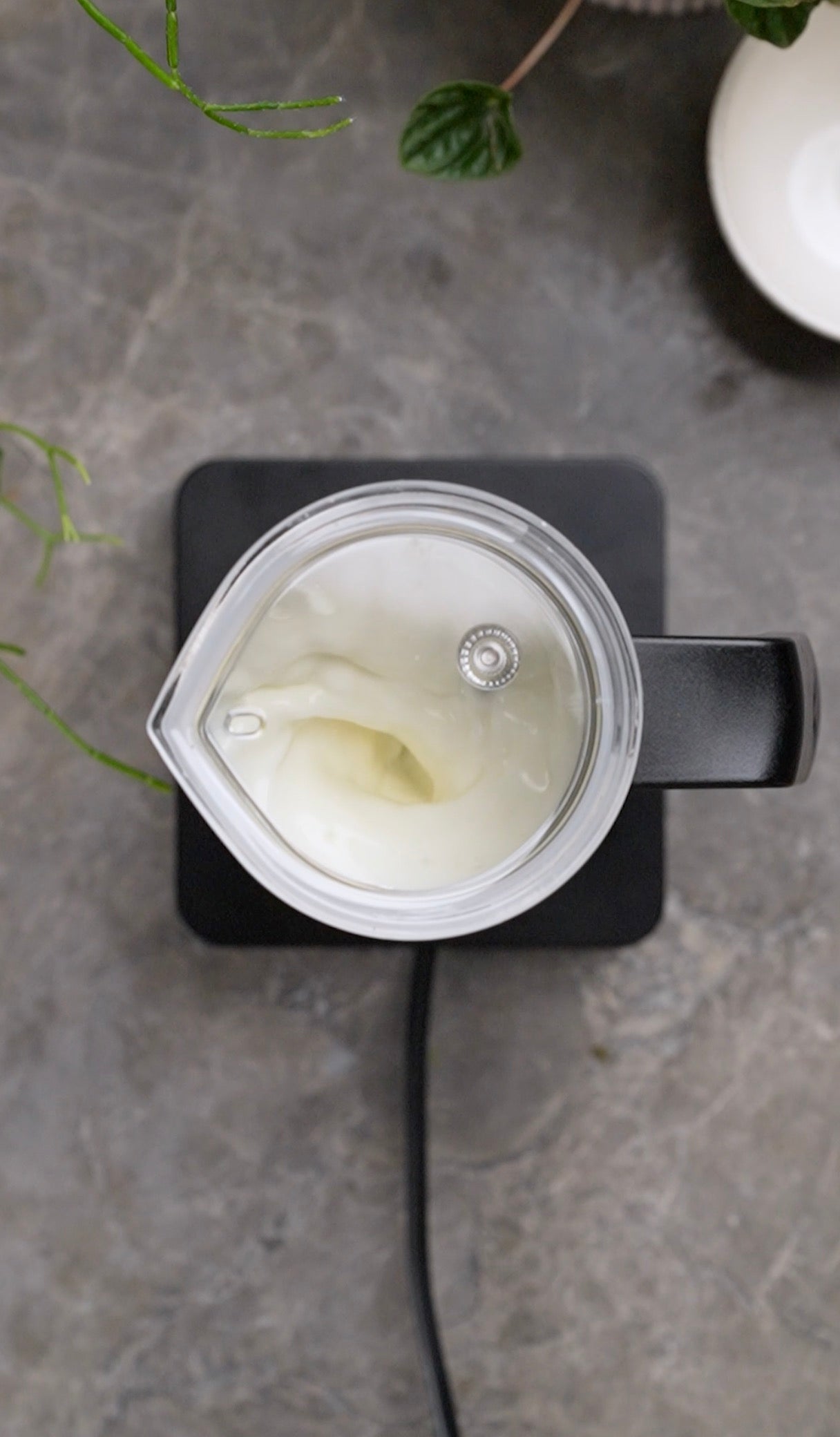

The flow controllers slow down the spinning vortex to ensure proper aeration and microfoaming while still allowing the impeller to spin extremely fast to pull down the bubbles.
Choosing the right flow controller may require a little experimentation, especially with milk alternatives.
Dairy milk is easy, just use the black flow controller for most drinks and upgrade to the blue on really big or foamy drinks.
For milk alternatives, you should start with the blue and upgrade to the green if you require more agressive aeration.

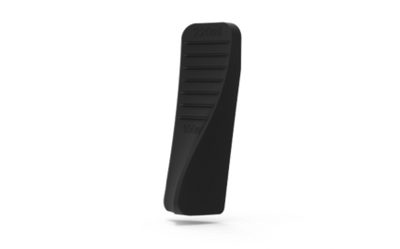

BLACK FLOW CONTROLLER
This model slows the milk down the most, use it with dairy milk and very easy to foam alt-milks.

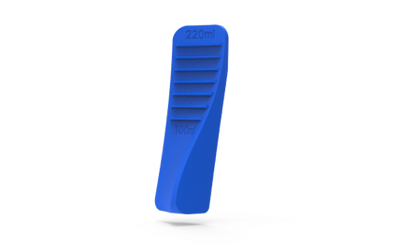

BLUE FLOW CONTROLLER
This one allows the milk to flow a little faster. It's great for big milk drinks and also for the barista edition milk alternatives.

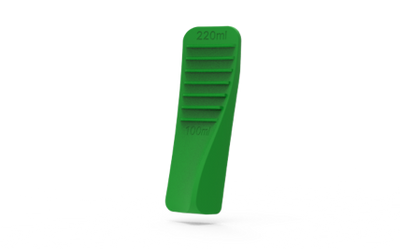

GREEN FLOW CONTROLLER
The green allows the fastest vortex and therefore the most aggressive aeration. It is milk alternatives that struggle to foam up.
CHOOSING AND FINE TUNING FLOW CONTROLLER ACCORDING TO YOUR MILK TYPE.
FROM BLACK
->Upgrade to the blue flow controller if you don't see a good vortex forming and need more aggressive aeration.
FROM BLUE
-> Upgrade to the green flow controller if you need more aggressive aeration.
<- Downgrade to the black flow controller if you are getting rips of aeration in the final microfoaming stage.
FROM GREEN
<- Downgrade to the blue flow controller if you are getting rips of aeration in the final microfoaming stage.
<- Downgrade to the blue flow controller if you are getting too much foam during the aeration stage.
FINDING YOUR IDEAL TEMPERATURE

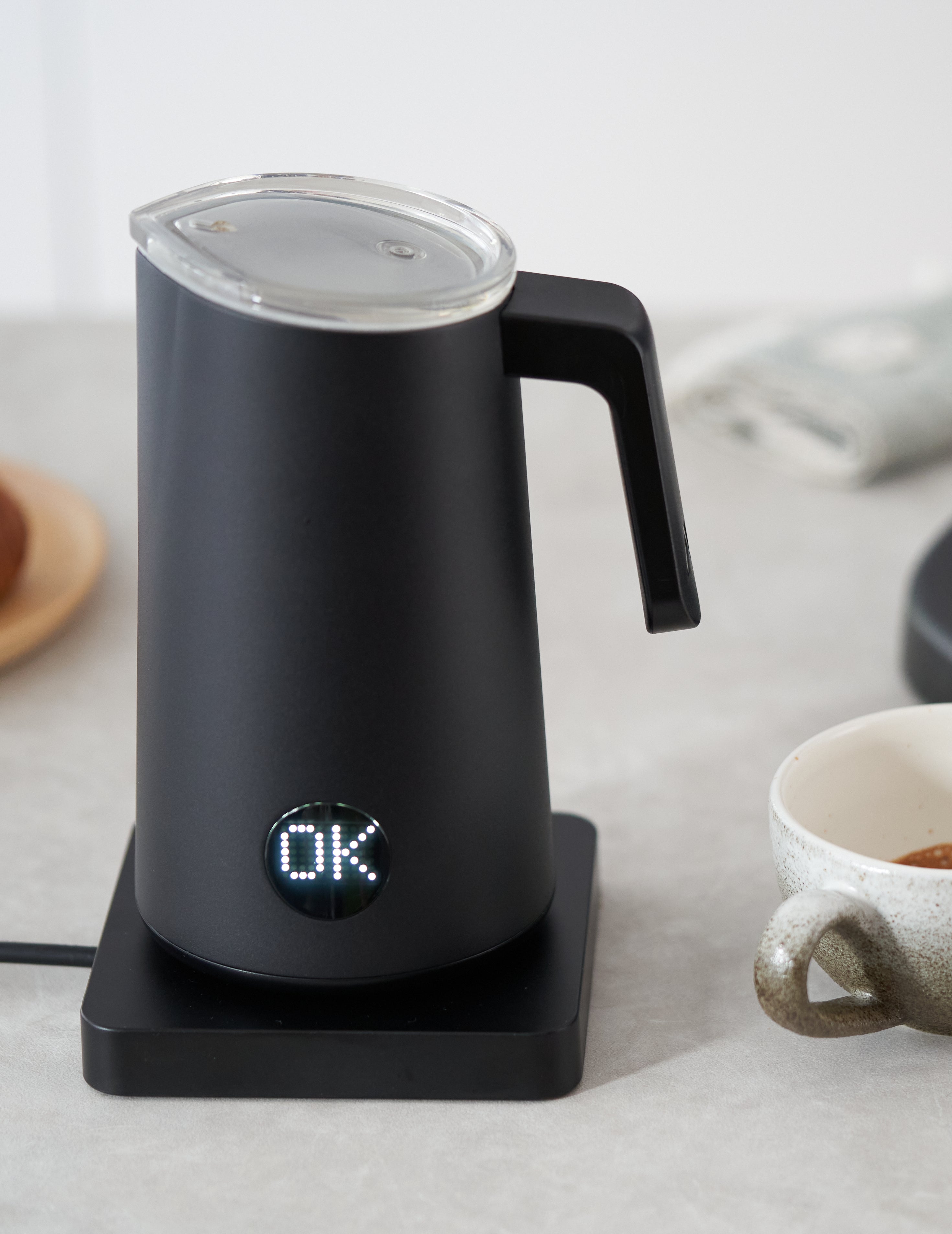

The NanoFoamer PRO will run beep and the display "OK" when the microfoam is ready at about 55°C / 130°F (+/-3°).
You may pick the NanoFoamer PRO up and pour if that is the right temperature for you.
If you like your milk hotter, let the NanoFoamer PRO continue churning as it heats up to about 65°C / 150°F and then stops.
Quick Tip: This final temperature range, and the heating time during the "OK" is designed to give you a notice that your milk is ready when you are. This gives you some time to prepare you jug wile the milk microfoam is being maintained by the churning impeller.
GEN-2 update The temperature is higher by 5°C at each beep on the GEN-2 with a top temperature of 70°C
TWEAK THE IMPELLER
GEN-2 ONLY

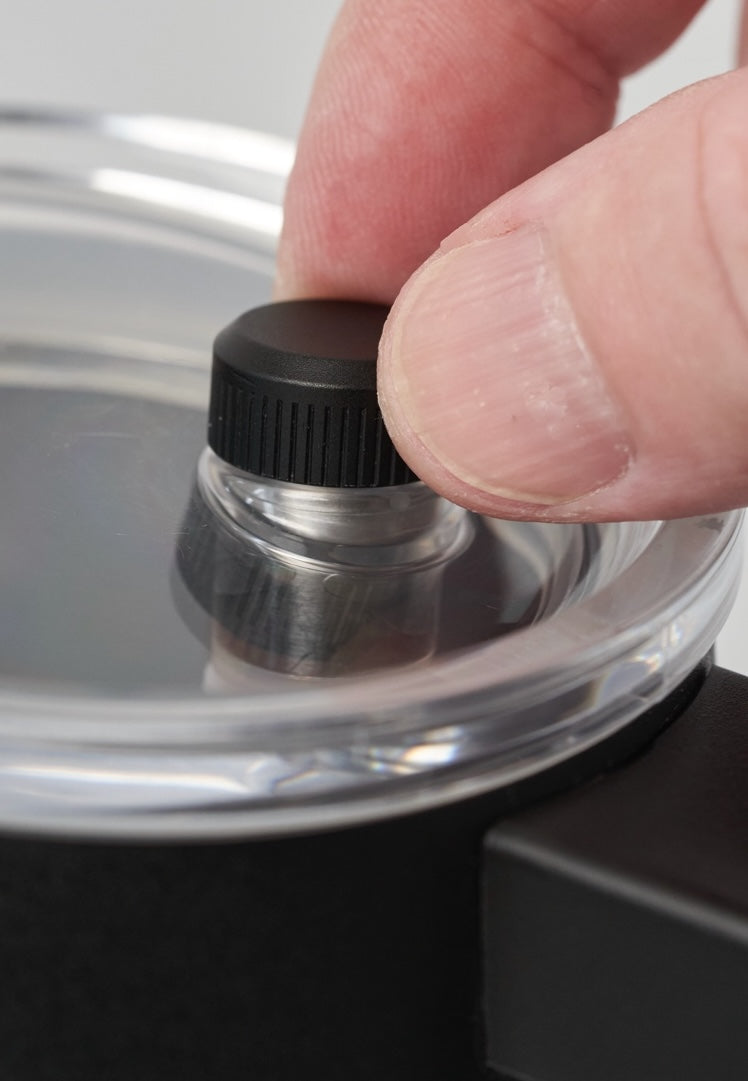

Adjust the height of the impeller by turning the knob on the lid, either before, or during the foaming process to find the perfect quiet magnetic balance.
- Clockwise to lowers the impeller
- Counter-clowise to raises the impeller.
TIP: Lowering the impeller will slighly subdue the aeration on smaller drinks while raising it helps the flow which will help with challenging milk alternatives. Experiment to find your favorite setting.
WATCH A SHORT VIDEO RECAP OF ALL THE TIPS SHARED ABOVE.
TROUBLESHOOTING (GEN-1)
GEN-2 UPDATE: Use the adjustment knob on the lid to raise or lower the impeller and to find the ultimate magnetic balance in the jug. The impeller can be lowered on small drinks and raised on big drinks. A spinout would signify the impeller is too high.
